16mm series Push Switch
16mm Metal Push Switch ring Sign
- Metal Push Switch
- Self-Lock
- waterproof
- Easy to operate
- Product description: Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic conv
Descriptions:
Model Number:16 Metal Push Button Switch
LED Voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v

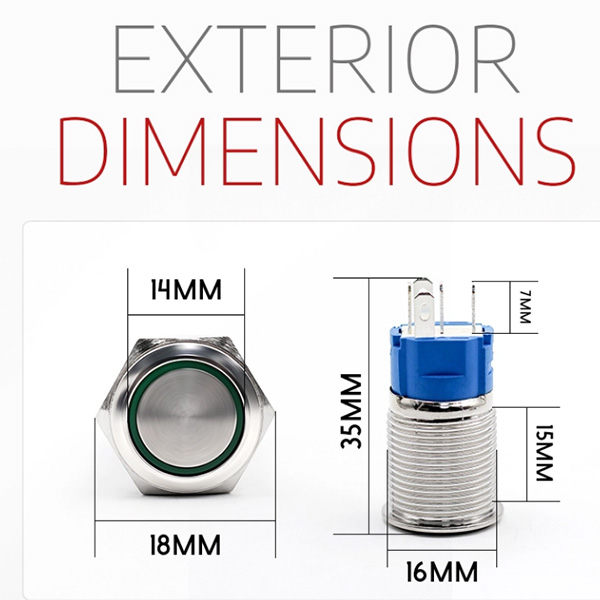

Mounting hole diameter:16mm
Head shape:Flat head/ High head
Crust material:Stainless Steel/Copper plating/Aluminum oxide
Contact configuration:1NO1NC- Normal Open/Normal Close

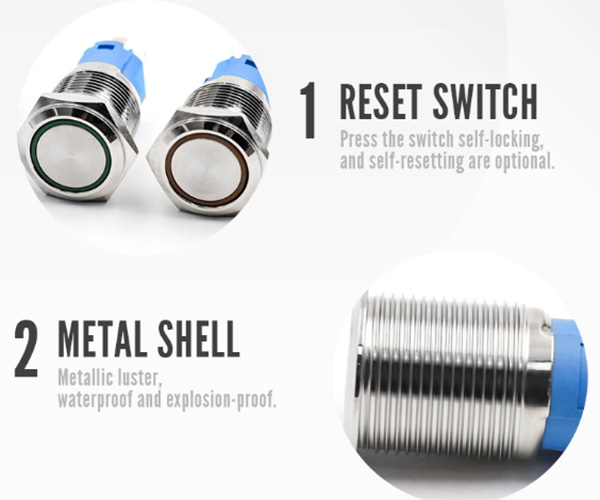

Operation type:Momentary or Latching

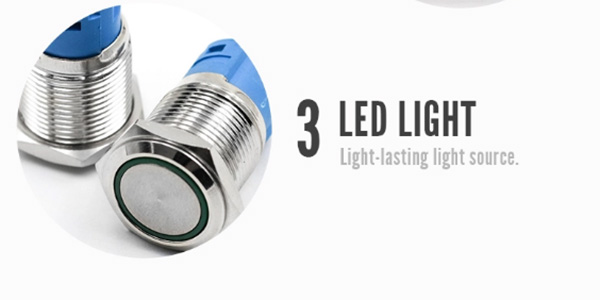

Emitting Type:Ring LED/Symbol LED/Dot LED
Switch Rating:3A / 250VAC
Features:
1.3A metal push button switch
2.Optional connector,To ensure contact performance,reduce waste of labor;
3.With concave design,operation is more convenient;
4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5.Waterproof and dustproof grade up to IP67;
6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;
7.1NO1NC function
8.Customzied: Acceptable
9.16MM SPST ON OFF IP67 IK10 momentary stainless steel push button
